Self Drilling Plasterboard Anchor
Self Drilling Plasterboard Anchor
Description

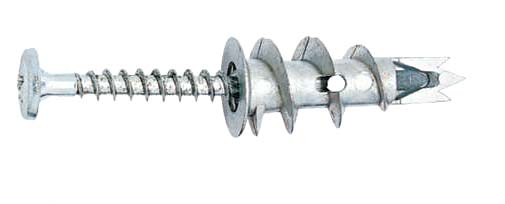

The original self drilling plasterboard anchor, quick and easy to install using only a screwdriver.
Substrates
- Plasterboard - dry partition walls
- Aerated concrete (with pre-drilled hole Ø 8mm)
Applications
- Bathroom accessories
- Fuse boxes
- Bracketry
- Signage
- Mirrors
- Dado rails
- Radiators (Driva® Plus only)
- Trunking (Mini Driva®)
Product Advantages
- High Strength Zamak 3 body
- A range of fixings for different applications
- Positive tightening of the anchor
- No need for pre-drilling
- Corrosion resistant
- Point breaks away if an overlong screw has been used
- Removable
- Head sits flush behind fixture
- Low profile head
- Screw thread profile - designed for efficient cutting and ensures a positive lock
- No maximum or minimum plasterboard thickness (excluding Driva® Plus)
- Driva® Plus combines screw and clamp fixing
- Mini Driva® for fixing trunking to plasterboard
Technical Specification
One piece self drilling anchor designed for fastening light / medium loads to plasterboard. For use in plasterboard, simply screw using a normal or power screwdriver. The pont drills a pilot hole followed by a coarse, specifically designed helical thread biting into the plasterboard substrate making the fix. The seperate screw is then used to mount the fixture.
When using standard Driva® in aerated concrete it is necessary to drill a 8mm diameter pilot hole.
Driva® Plus works in the same way as standard Driva® in plasterboard, but is designed for fixing heavier loads. The additional hinged toggle swivels and pulls towards the inner face of the cavity through the action of the mounting screw. This gives a combined screw and clamp fix.
Mini Driva® is used on its own, whereas other Driva® products require a screw to secure the fixture and in the case of Driva® Plus, rotate the toggle.
Material - Anchor Body
Driva®, Driva® Plus, Mini Driva® - Zamak 3
Driva® LD - Glass Fibre Reinforced Nylon Polyamide
Installation - Driva®
Installation - Driva® Plus
Installation - Mini Driva®
Installation - Driva® LD
Data
| Product Range - Driva® Original Self Drilling Plasterboard Fixing |
| Eurocode |
Description |
Anchor Length |
Screw Length |
Drill
Ø* |
Max . Fixture Thickness |
Box Qty |
| 059360 |
Driva® TP12 |
37mm |
35mm |
8mm |
12mm |
100 |
| 059380 |
Driva® TF27 |
37mm |
50mm |
8mm |
27mm |
100 |
| 059370 |
Driva® TF5 |
37mm |
25mm |
8mm |
5mm |
100 |
| 059910 |
Driva® F12 (Plastic) |
43mm |
35mm |
- |
12mm |
100 |
| * For pre-drilling into aerated concrete. |
| Product Range - Mini Driva® One Step Self Drilling Plasterboard Fixing |
| Eurocode |
Description |
Anchor Length |
Head Ø |
Hole Ø |
Max . Fixture Thickness |
Box Qty |
| 059430 |
Mini Driva® |
25mm |
7.5mm |
5mm |
5mm |
200 |
| Product Range - Driva® Plus Self Drilling Plasterboard Fixing |
| Eurocode |
Description |
Anchor Length |
Screw Length |
Max . Fixture Thickness |
Box Qty |
| 061190 |
Driva® Plus TP12* |
45mm |
39mm |
12mm |
100 |
| 061200 |
Driva® Plus TF30** |
60mm |
39mm |
30mm |
100 |
| *TP = Pan Head **TF = Countersunk |
| Product Range - Driva® LD Self Drilling Non Conductive Plasterboard Fixing |
| Eurocode |
Description |
Anchor Length |
Screw Length |
Max . Fixture Thickness |
Box Qty |
| 058850 |
Driva® LD TP12 |
30mm |
25mm |
12mm |
200 |
| Product Range - NEW Driva® TP12 Tub |
| Eurocode |
Description |
Anchor Length |
Screw Length |
Drill Ø |
Max . Fixture Thickness |
Tub Qty |
| 055302 |
Driva® TP12 500pc Tub* |
37mm |
35mm |
8mm |
12mm |
500 |
| * Must be ordered by the pallet in multiples of 48. |
| Product Range - Driva® TP12 Kit with Screwdriver |
| Eurocode |
Description |
Kit Qty |
| 074180 |
Driva® TP12 200pc Kit with Screwdriver |
200 |
|
